PRODUCT DESCRIPTION
Utility Track Car
Product description:
Utility track car is used for personnel transportation, material and tool handling & transportation for railway department. We can design and manufacture various kinds of track car for railway maintenance and transport of railway construction staff or short distance passengers according to customer's special requirements.

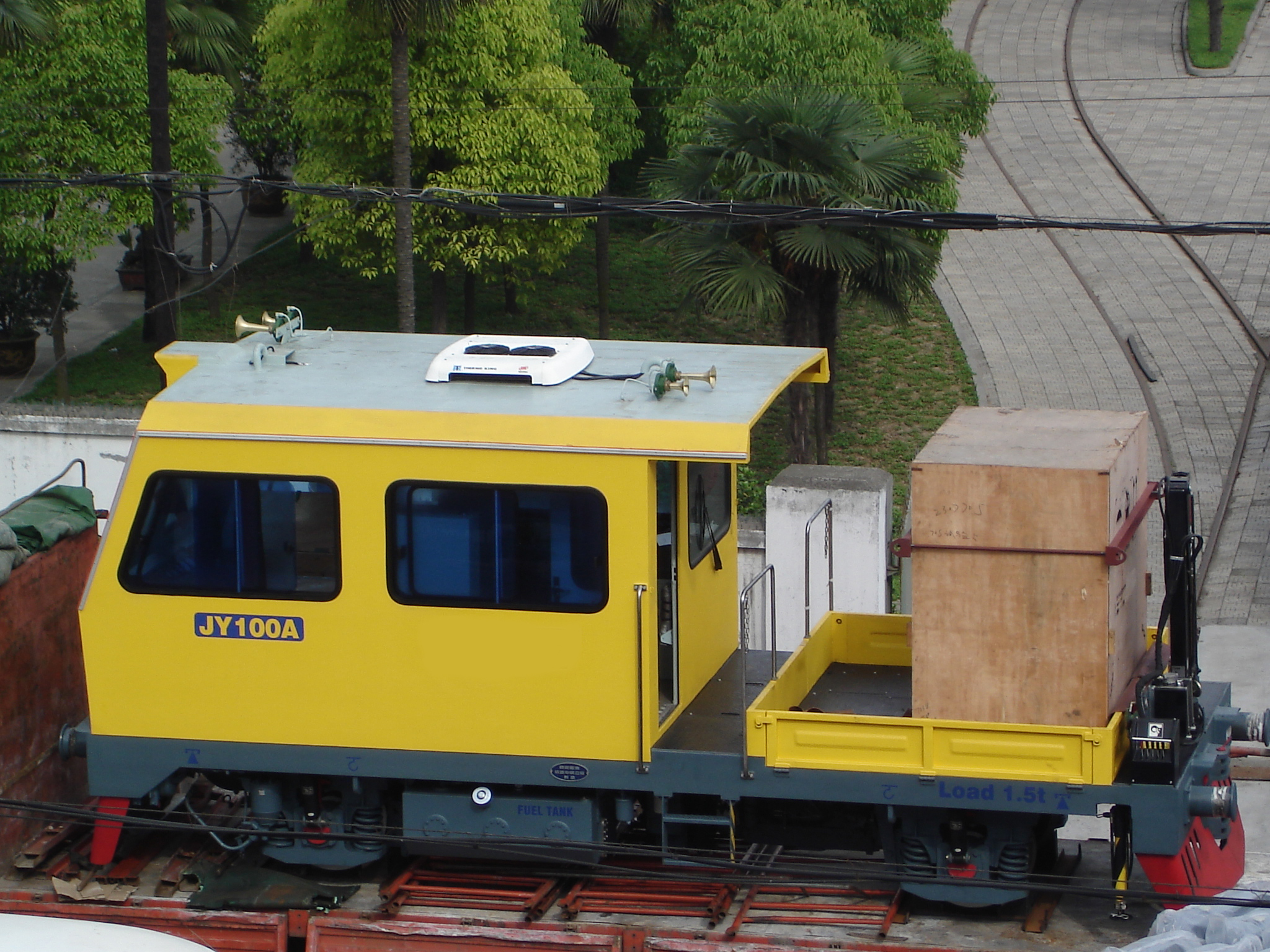

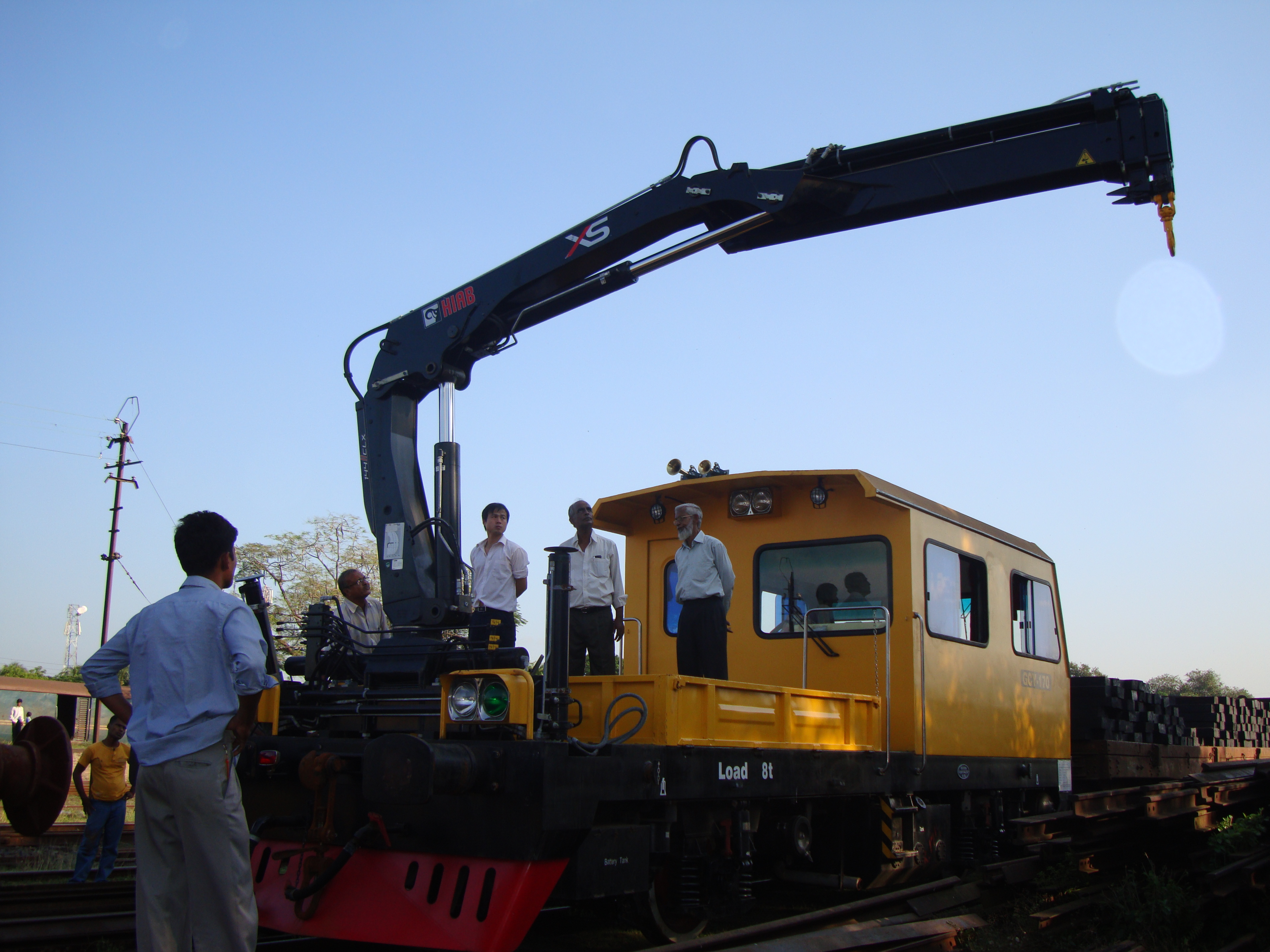

The track car consists of front cab and rear open loading table as well as foldable crane. It is mainly composed of power and drive system, running gear, underframe, car body, coupler, electrical system, brake system, control system, hydraulic system and on-board crane, etc.
Main technical parameters:
|
1 |
Track gauge: |
1435mm |
|
2 |
Wheel diameter: |
Φ840mm |
|
3 |
Wheel base: |
7500mm |
|
4 |
Drive mode: |
Hydro-mechanical transmission |
|
5 |
Engine power |
228W |
|
6 |
Traveling speed: |
100km/h |
|
7 |
Min raidus of curve negotiated : |
145m |
|
8 |
Brake mode: |
Air brake and parking hand brake |
|
9 |
Gross weight: |
Approx. 25 ton |
|
10 |
Loading capacity: |
6 ton |
|
11 |
Seating capacity : |
10 persons (including driver) |
|
12 |
Max. overall dimension (L×W×H) : |
12980mm*2860mm*3670mm |
