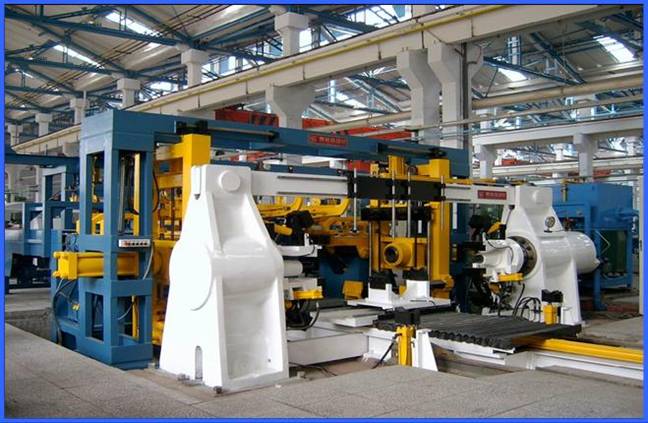

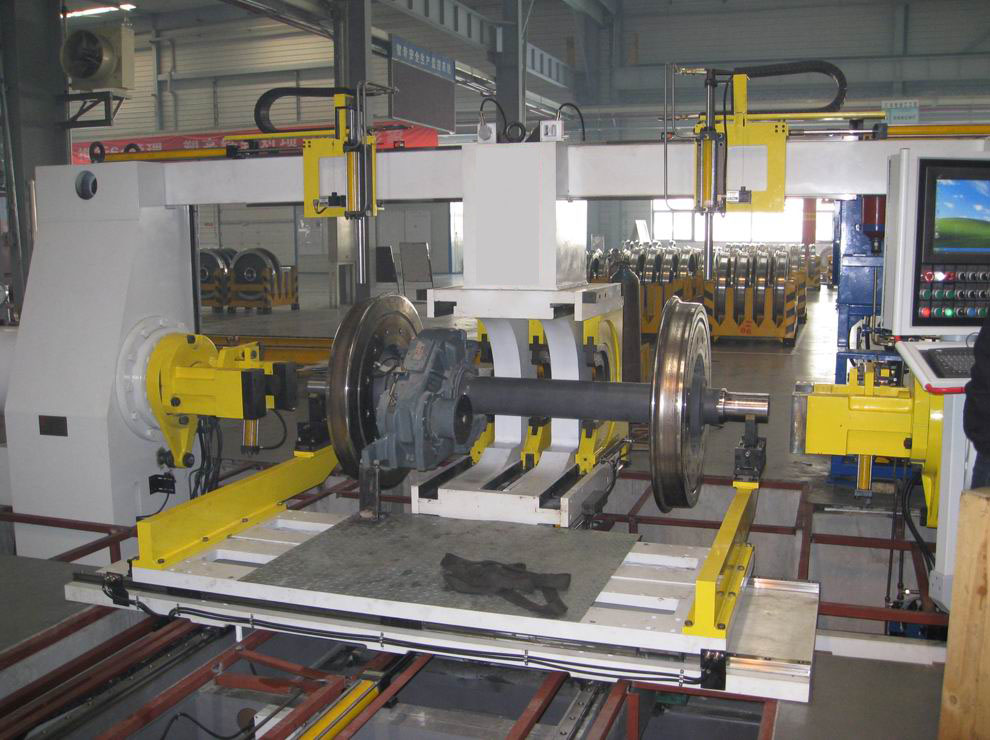

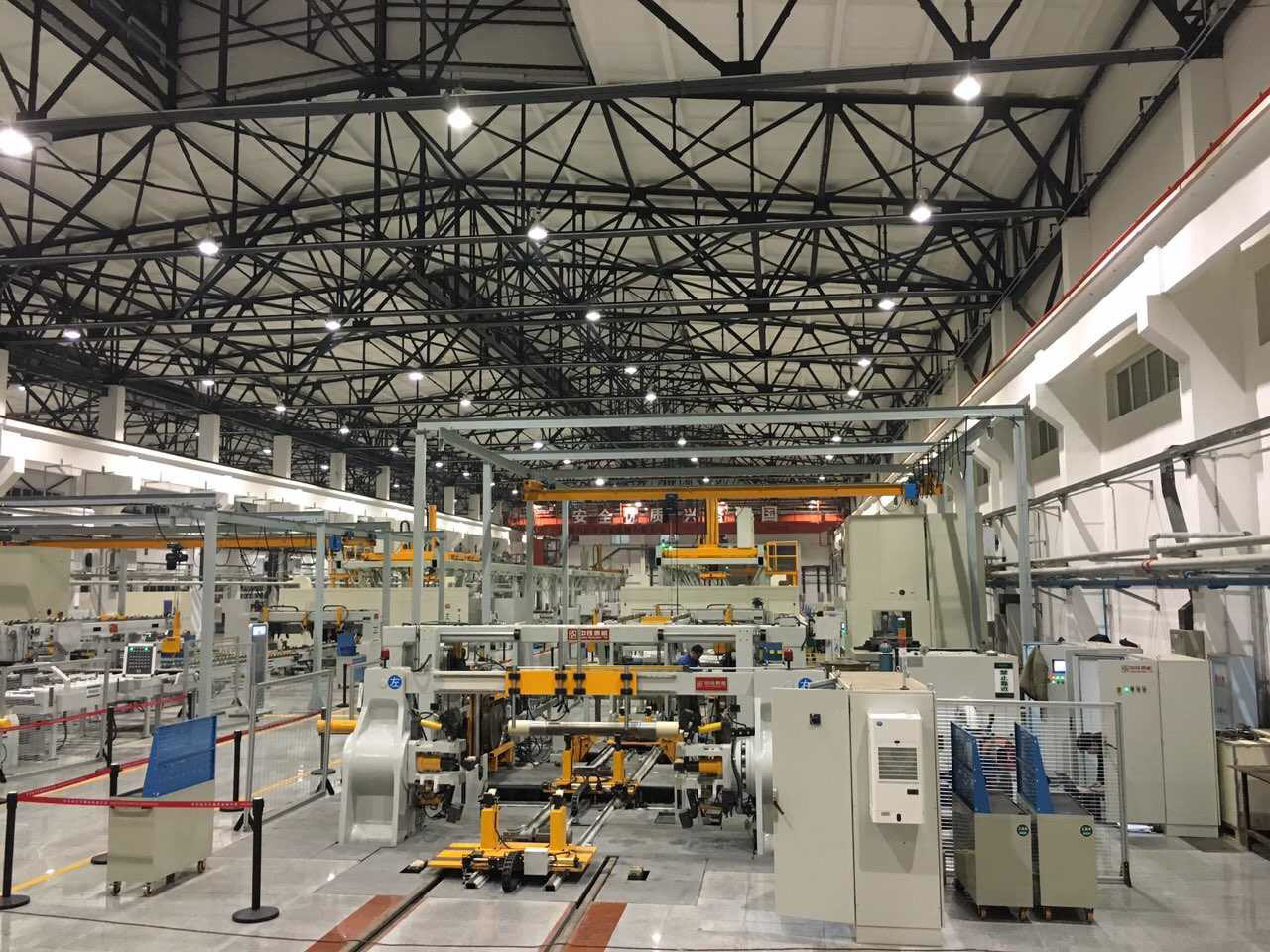

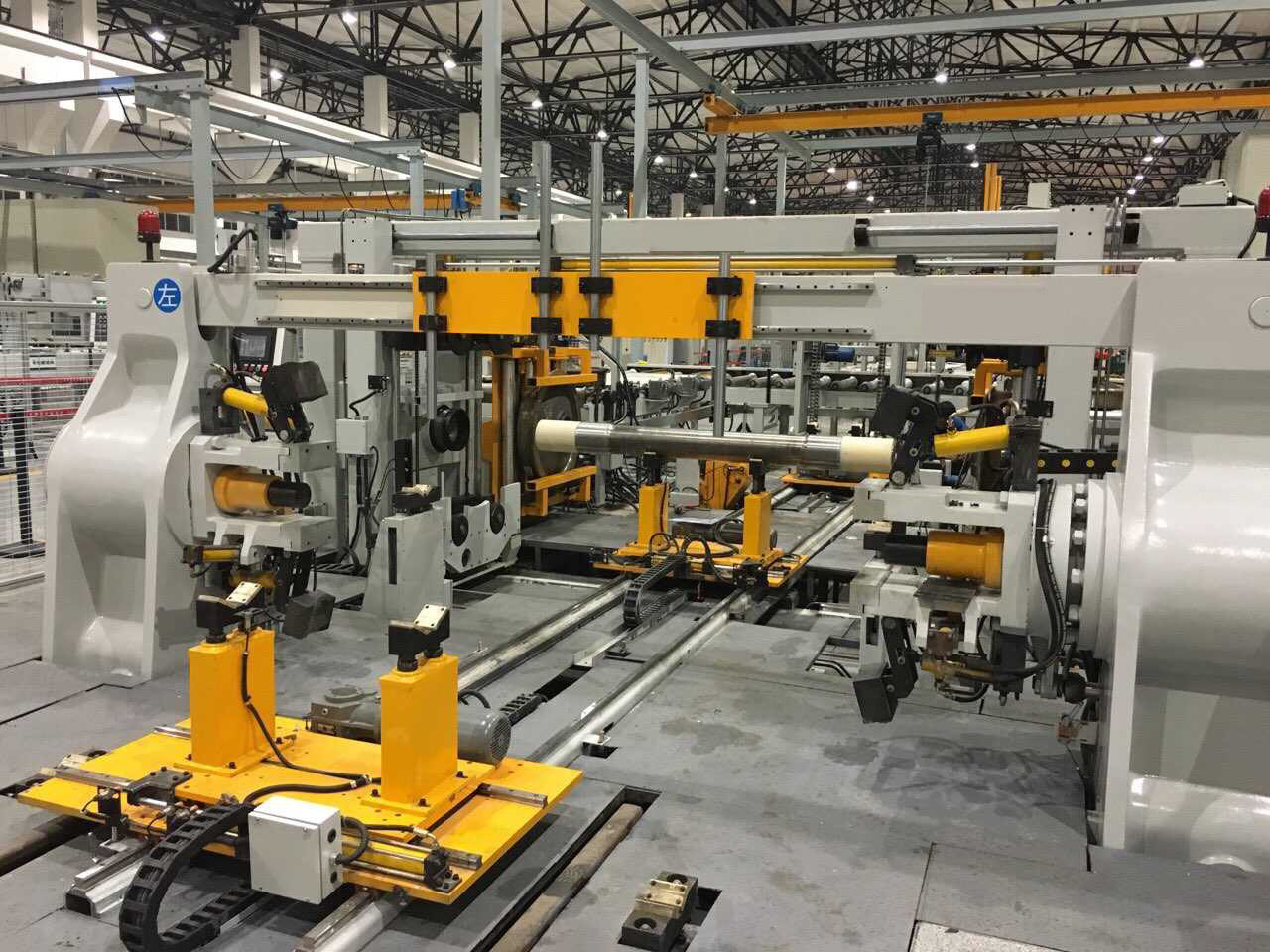

Wheel Press Machine
Product description:
The wheel press machine is specially used for mounting and dismounting wheelset, brake disc, gearbox of railway rolling stocks with different track gauge (standard gauge, narrow gauge and broad gauge).
1. The pressing capacity range is 2500kN~4500kN
2. Pressure force curves can be recorded, restored and printed out by the wheel press machine.
3. There are manual operation and automatic operation modes for customer's choice.
4. The key elements of our wheel press machine are imported from reputable suppliers in the world to guarantee the excellent performance of the machine. For example, the hydraulic system is originally imported from Bosch-Rexroth Company, Germany.
Main technical parameters:
|
1 |
Max. ram force: |
2500kN~4500kN |
|
2 |
Stroke of pressure cylinder ram: |
800 mm |
|
3 |
Max. diameter of wheels to be pressed: |
350-1350 mm |
|
4 |
Max. approach and return speed of ram: |
1800 mm/min |
|
5 |
Mounting speed of pressure cylinder ram: |
40-300 mm/min |
|
6 |
Range of Axle length: |
1600--2800 mm |
|
7 |
Diameter of wheel seat to be pressed: |
150-260 mm |
|
8 |
Capacity of oil tank: |
1000 L |
|
9 |
Gross power: |
32kW |
|
10 |
Motor power for master hydraulic pump: |
18.5kW |
|
11 |
Motor power for auxiliary hydraulic pump: |
2.2kW |
|
12 |
Power supply: |
380V; 50H; 3PH |
|
13 |
Gross weight: |
35000 kg (approx.) |
|
14 |
Overall dimension: |
8000*2000*3000 mm |
|
15 |
Ground space required |
8000mm*3500 mm |
